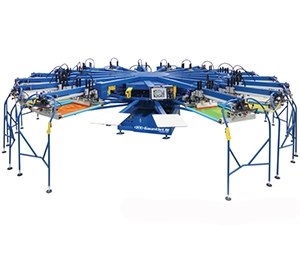

M&R Gauntlet III Automatic Textile Press


Gauntlet III is M&R's versatile, high-production mid-size automatic screen printing press. It’s available in 10-16 colors with a maximum standard image area of 48 x 55 cm (19” x 22”). Gauntlet III automatic screen printing machines feature printheads driven by fast, reliable electric-drive motors. The printheads feature calibrated tool-free click-stop four-corner off-contact settings for fast and accurate screen leveling.

The press includes tool-free front and rear print-stroke adjustment for versatility and exceptionally high production rates. Pneumatic screen clamps facilitate rapid screen loading and deliver excellent stability on a wide variety of screens. The squeegee/floodbar park feature facilitates setup and tear-down by simultaneously retracting the squeegee and floodbar and then moving them to the outside edge of the press for easy access. M&R's Laser Locator System speeds pallet positioning and changeover, and it assists operators in the precise positioning of garments and cut-piece goods.
SPECIFICATIONS:
  • Colors: 10 - 16
  • Stations: 12 -18
  • Maximum Screen Size: 52" x 36"
  • Air: Required
FEATURES:
  • Clockwise or counter clockwise rotation
  • Revolver print program
  • Tool Free off contact
  • Touchscreen control panel
  • 2 Year Limited Warranty

Ratings & Reviews

Product Disclaimer

Item numbers available:

MRPGNTLT31210
